Description

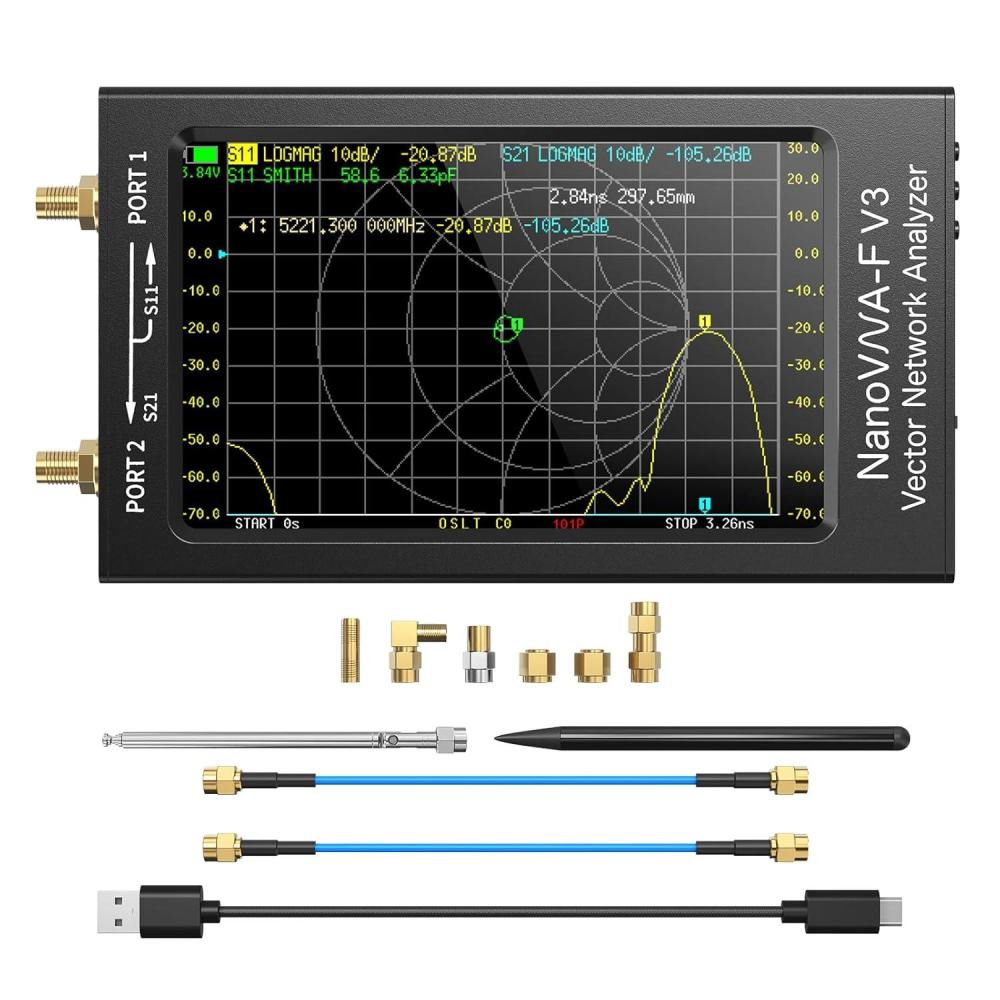

Seesii upgraded value nanovna-f v3 kit includes 1 x NanoVNA-F V3,1 x Gold-Plated SMA Calibration Kit (LOAD, OPEN and SHORT),1 x SMA Female to SMA Female Connector,1 x SMA Male to SMA Male Connector,1 x SMA JKW Connector,2 x 20cm/7.9″ RG405 Cables,1 x USB Type-C Data Cable

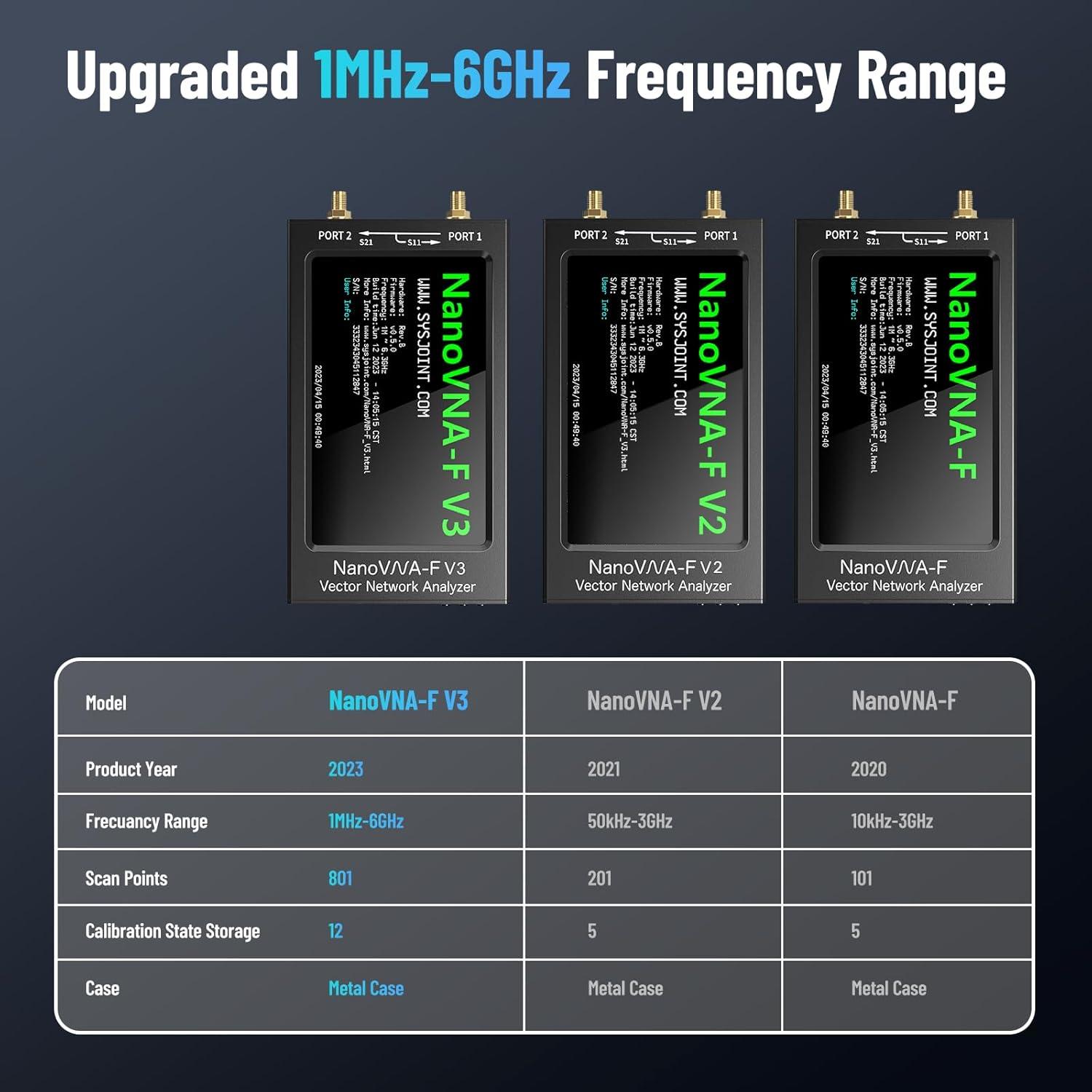

Widely Frequency Range: Compared to the Nanovna-F V2 (50kHz-3GHz), the upgraded Nanovna-F V3 has 1MHz-6GHz ultra-wide measuring frequency range, The S21 dynamic range of NanoVNA-F V3 is 65 dB, while the S11 dynamic range is 50 dB. The scan points is up to 101-801 and the calibration result storage is 12, covering up to the full low or high frequency range. Faster and more accurate measurement performance, you can easily cope with measurement testes in various fields

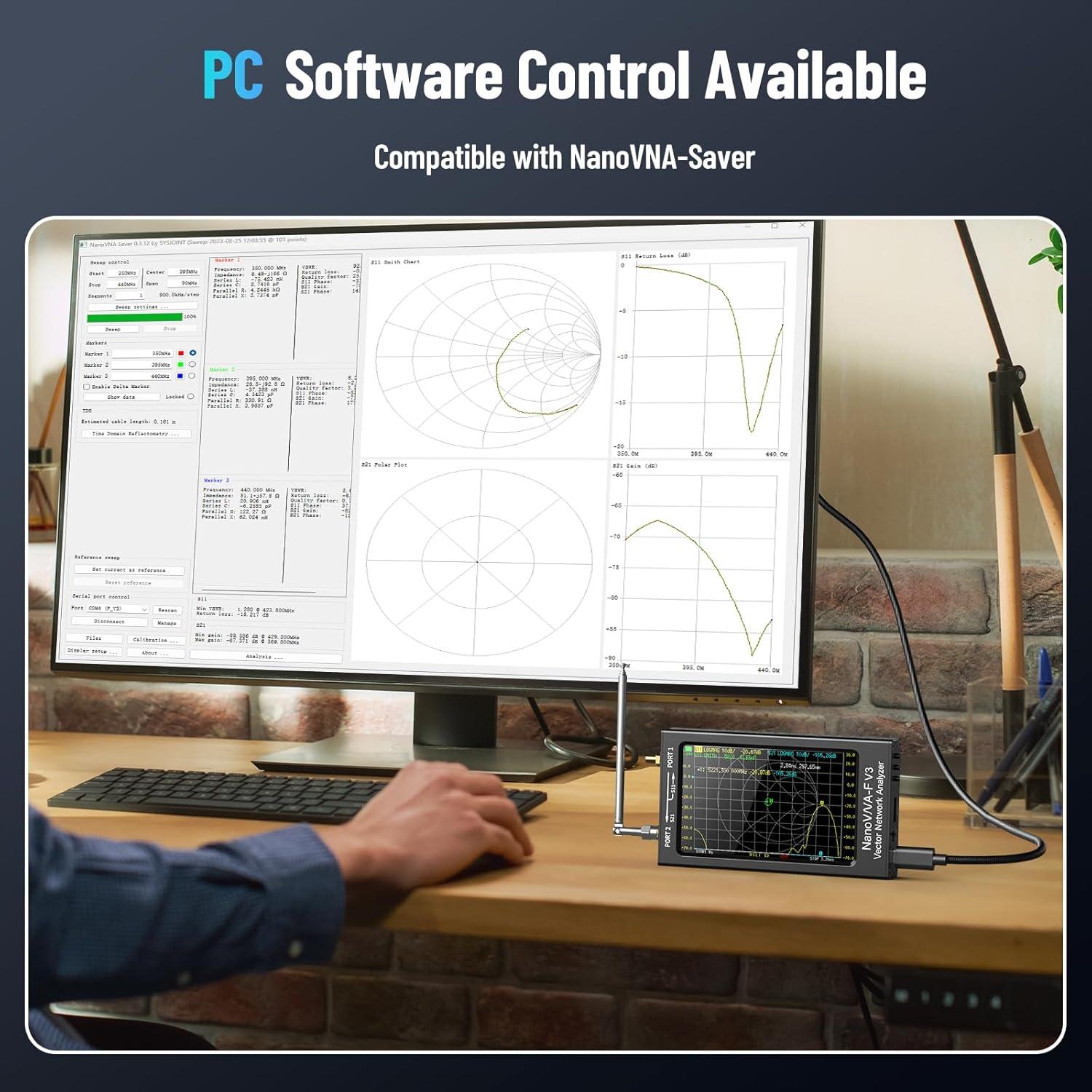

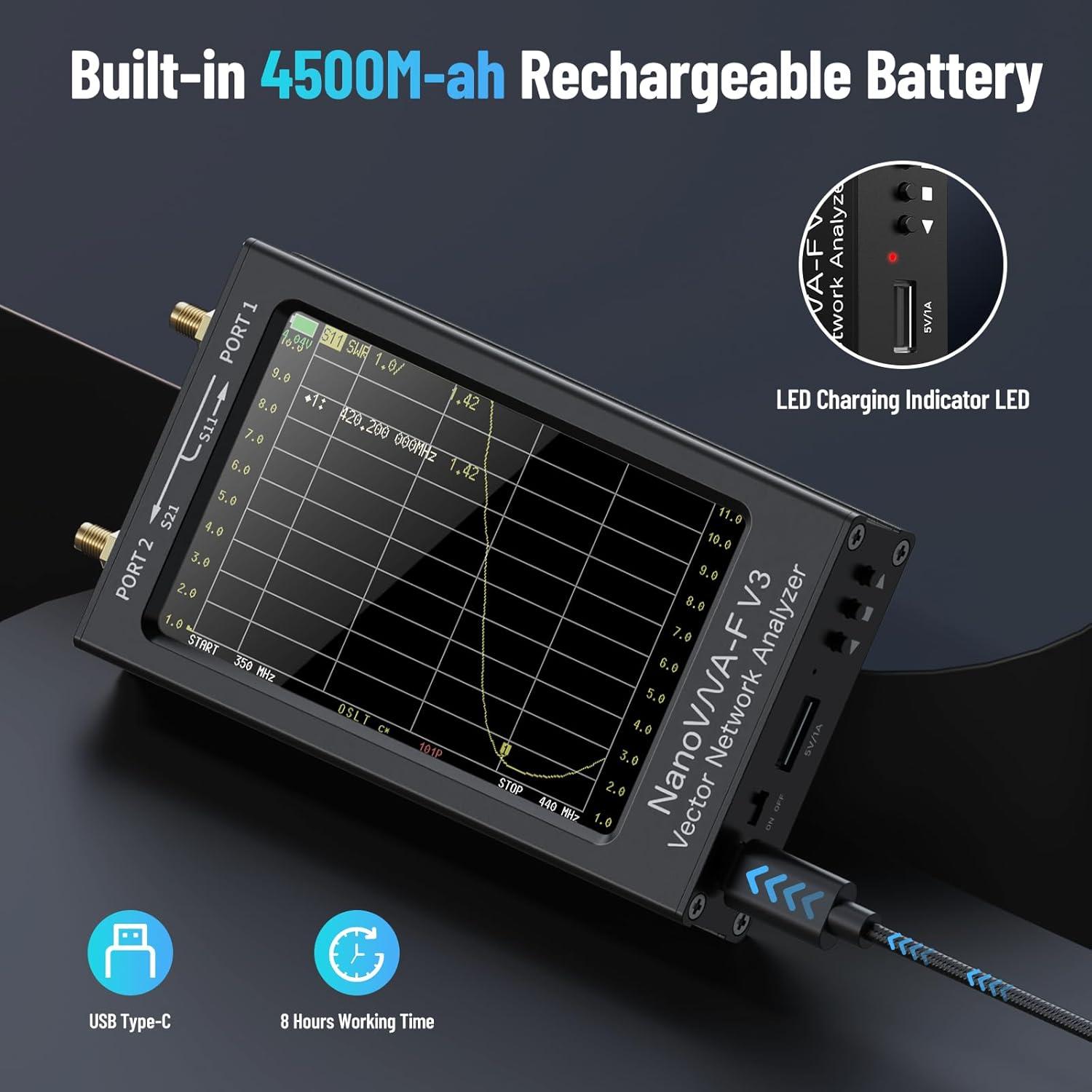

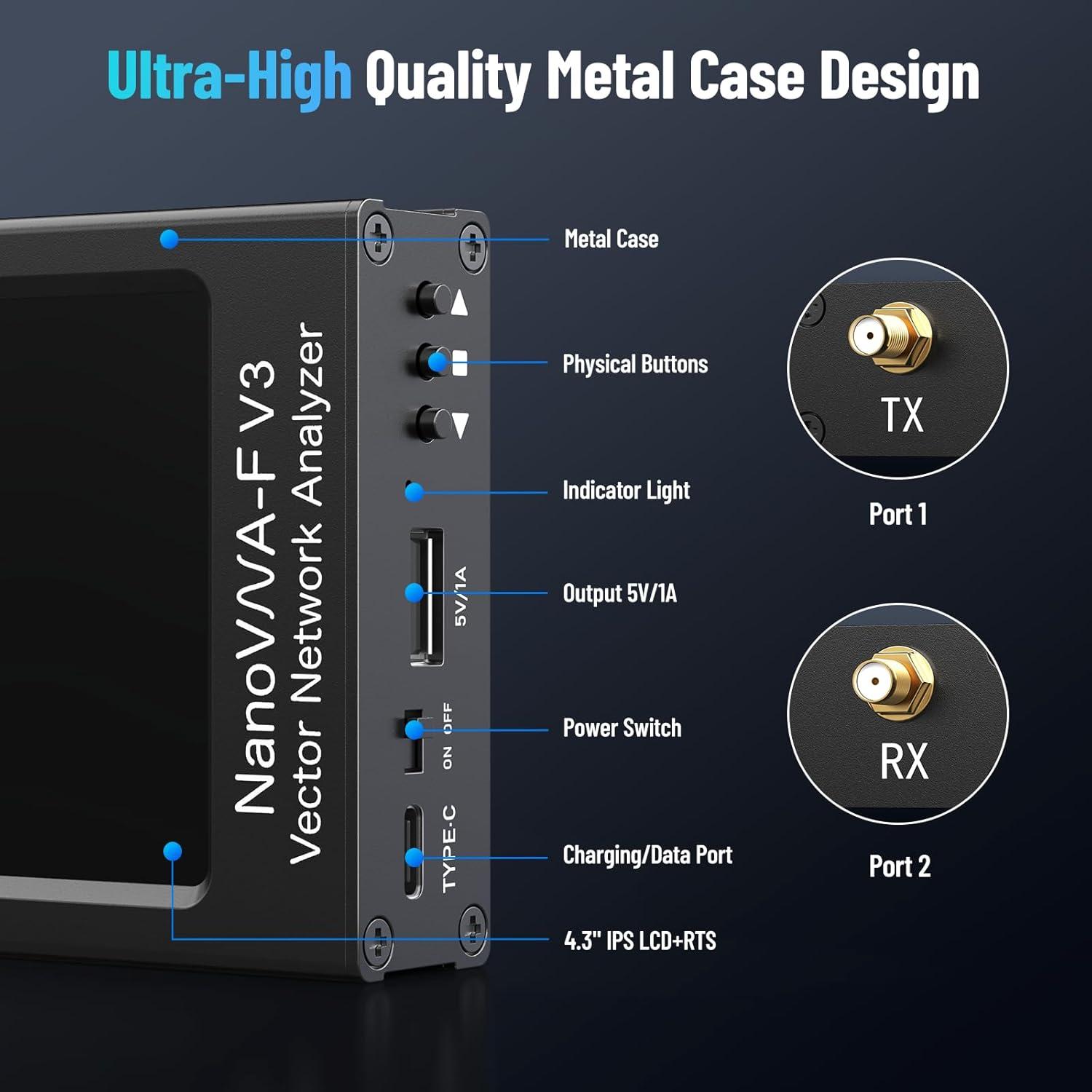

Trustworthy Quality: This nano vna analyzer is made of durable metal material which helps shield electromagnetic interference. It has an SMA connector design for direct DUT connection. Supports PC software control and NanoVNA Saver. Built in 4500mAh rechargeable battery with type C charging cable and LED indicator, fully charged in about 3 hours,no need to charge frequently

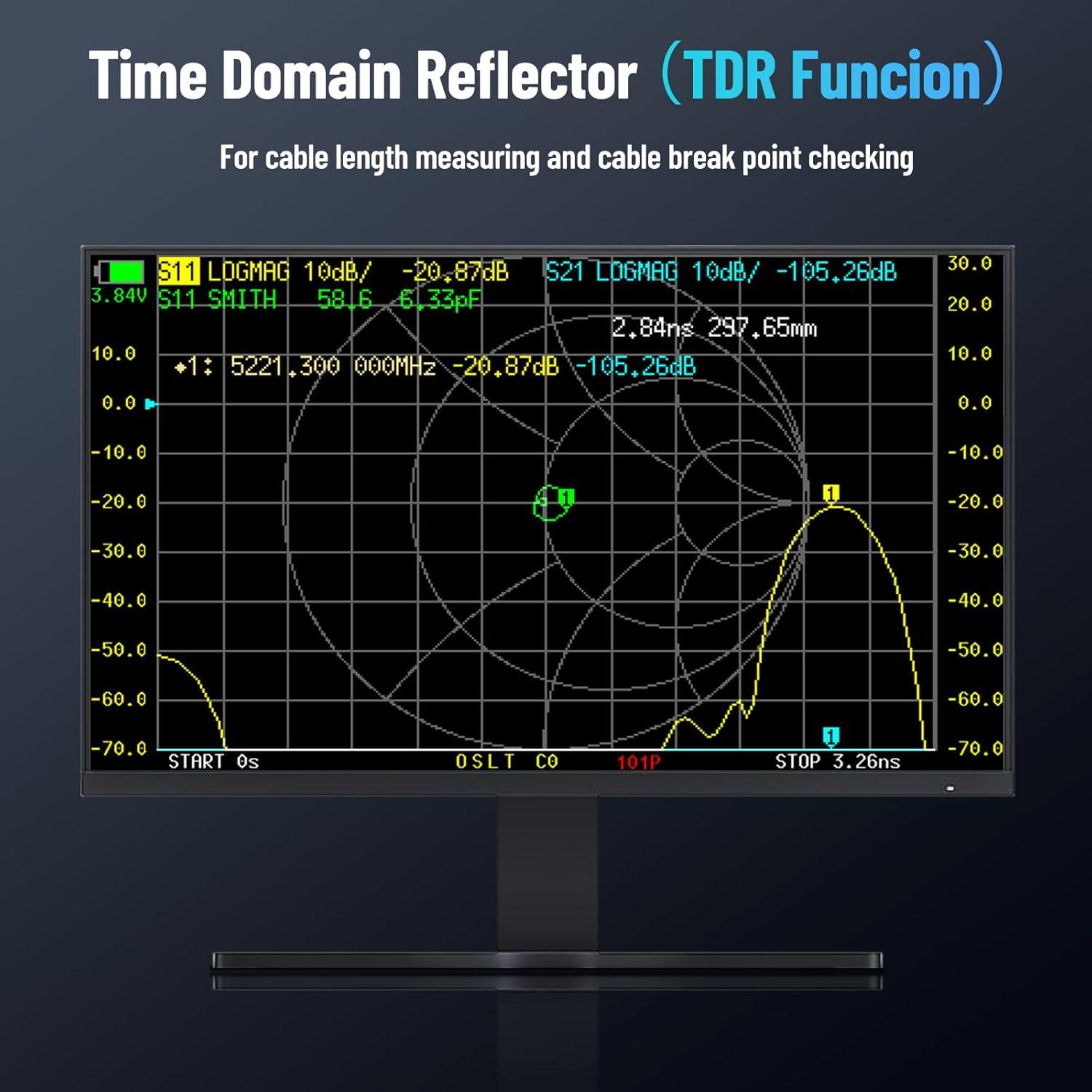

Multiple Measurement Functions: SeeSii NanoVNA F V3 antenna analyzer is suitable for MF HF VHF UHF SHF antenna testing. Supports display formats such as Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group delay, Resistance and Reactance. Can measure filters, amplifiers, attenuators, cables, power dividers, couplers and duplexers, this latest vna antenna analyzer will be a very handy analyzer to have

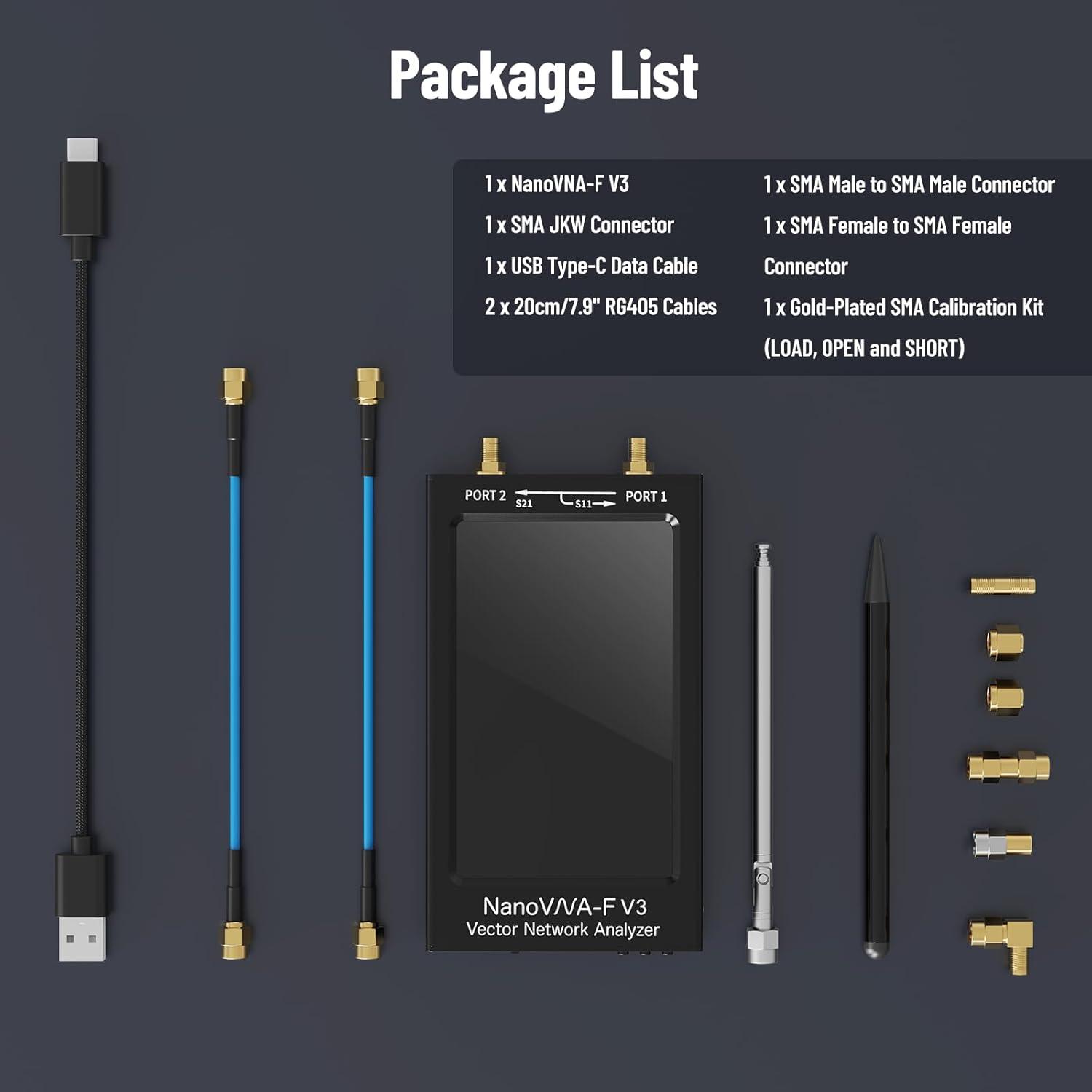

What You Will Get:Seesii upgraded value nanovna-f v3 kit includes 1 x NanoVNA-F V3,1 x Gold-Plated SMA Calibration Kit (LOAD, OPEN and SHORT),1 x SMA Female to SMA Female Connector,1 x SMA Male to SMA Male Connector,1 x SMA JKW Connector,2 x 20cm/7.9″ RG405 Cables,1 x USB Type-C Data Cable
Package Dimensions : 9.88 x 6.06 x 1.97 inches; 1.32 Pounds
Item model number : NanoVNA-F V3
Batteries : 1 Product Specific batteries required. (included)
Date First Available : July 26, 2023
Manufacturer : Seesii
Best Sellers Rank: #70,481 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
- #19 in Spectrum Analyzers
